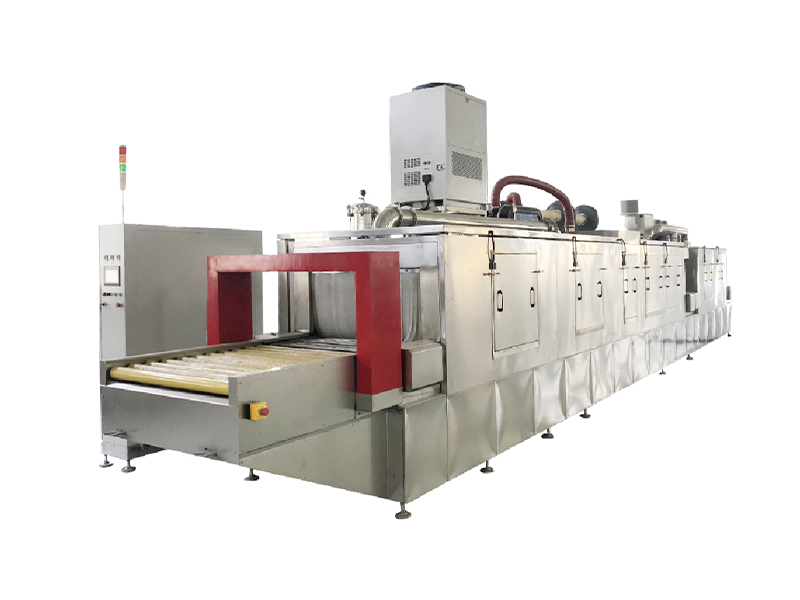

滾杠式噴淋清洗機主要適用于番茄、黃瓜、山藥等球莖類產品的清洗，滾杠清洗機采用多級高壓水泵噴淋水霧清洗，有效分離被清洗物表面附著物，模擬雨水清洗基本動作并有效避免了人工清洗中的碰、磕、劃傷等現象，提高了工作效率，變?nèi)斯ぷ鳂I(yè)為機械化加工。適合于各種類玉米的清洗工作。

The rolling bar spray cleaning machine is mainly suitable for cleaning bulbous products such as tomatoes, cucumbers, yams, etc. The rolling bar cleaning machine adopts a multi-stage high-pressure water pump to spray water mist for cleaning, effectively separating the surface attachments of the cleaned object, simulating the basic action of rainwater cleaning, and effectively avoiding the phenomena of collision, bump, scratch, etc. in manual cleaning, improving work efficiency and transforming manual operation into mechanized processing. Suitable for cleaning various types of corn.

2、設備整機采用SUS304制作。運行平穩，噪音低。整機有輸送區、清洗區、瀝水區、及循環水處理區等組成。

2. The entire equipment is made of SUS304. Smooth operation with low noise. The whole machine consists of a conveying area, a cleaning area, a drainage area, and a circulating water treatment area.

3、該設備由槽體、接水槽體、噴水系統、輸送裝置等主要部分組成。物料放置于輸送帶上，首先利用高壓噴淋系統噴出的高壓水流，使物料進行粗洗，使物料上帶有得毛皮、泥沙等污物脫離后落入下面的水槽區，物料在滾杠輸送帶的帶動下引動到下一工作區域，再經過高壓噴淋清洗，徹底去除表面的污物，使物料清洗的更徹底，更完全。工作過程中，進水管和噴淋水管始終供水，并且各級水泵用水實現分級過濾、分級利用、循環供水。有效的節省了生產成本。

3. The equipment consists of a tank body, a water receiving tank body, a water spraying system, a conveying device, and other main components. The material is placed on the conveyor belt. Firstly, the high-pressure water flow sprayed by the high-pressure spray system is used to roughly wash the material, causing the dirt such as fur and mud on the material to detach and fall into the lower water tank area. The material is driven by the roller conveyor belt to move to the next working area, and then undergoes high-pressure spray cleaning to completely remove surface dirt, making the material cleaning more thorough and complete. During the work process, the inlet pipe and sprinkler pipe always provide water, and the water used by each level of water pump is graded for filtration, utilization, and circulating water supply. Effectively saving production costs.

水箱內的污水排出設備，進入污水回收池。結合公轉自轉原理設計而成的滾杠式輸送網帶，使?jié)L杠在輸送物料過程中，滾杠在導軌的作用下，實現了自傳，滾杠的自傳帶動物料本身也發生連續性轉動，加上合理的噴嘴分布設計，使物料在運行過程中，更好的接受全面的噴淋系統的清洗。

The sewage discharge equipment inside the water tank enters the sewage recovery tank. The roller conveyor belt is designed based on the principle of revolution and rotation, which enables the roller to self transmit during the material transportation process under the action of the guide rail. The self transmission belt of the roller also undergoes continuous rotation of the material itself. With a reasonable nozzle distribution design, the material can better receive comprehensive cleaning by the spraying system during operation.
